1/ Command :

• EC4

2/ Description :

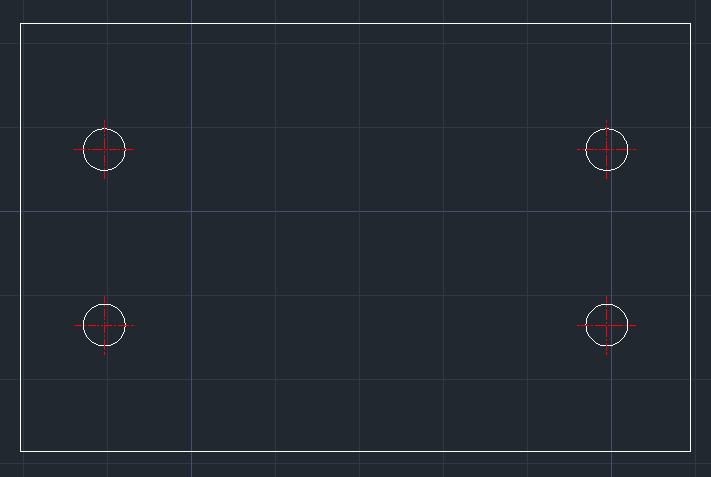

This tool automatically draws 4 circles (holes) inside a rectangle, one near each corner, with precise offsets.

• Symmetrical Pattern : Places four holes symmetrically, all equidistant from their respective corners.

• Auto-Scaling Centerlines : Automatically creates the CENTER layer (if missing) and adjusts the linetype scale (CELTSCALE) based on the circle's diameter to ensure visibility.

3/ How to Use :

1. Type EC4 in the command line and press Enter.

2. Specify the Bottom-Left corner of the rectangle.

3. Specify the Top-Right corner of the rectangle.

4. Enter the X Distance (Offset) from the corner to the circle's center.

5. Enter the Y Distance (Offset) from the corner to the circle's center.

6. Enter the Diameter of the circles.

7. The tool instantly draws the 4 circles and their centerlines.
