Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• NOTCH

2/ Description :

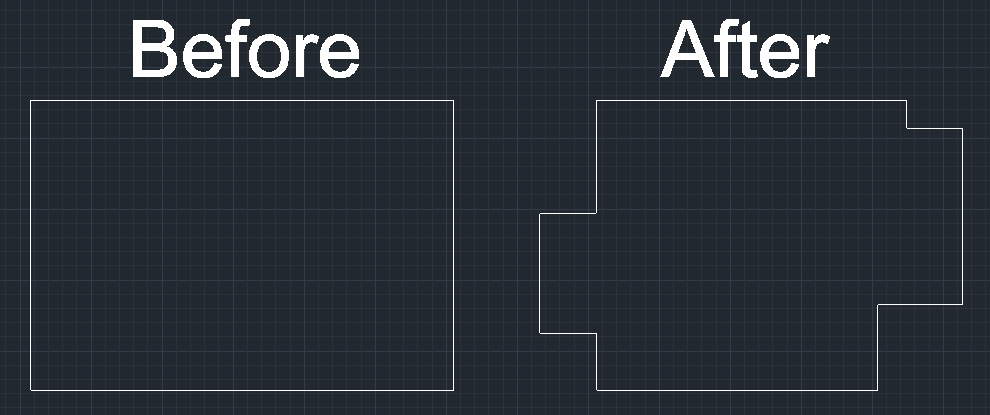

This tool allows you to easily cut out (notch) the corner of a rectangle based on specific X and Y dimensions.

• Precise Cutting : You input the width and height of the area to be removed from the corner.

• Corner Versatility : Works on any corner of a rectangle.

3/ How to Use :

1. Type NOTCH in the command line and press Enter.

2. Select the Corner Point of the rectangle you want to cut.

3. Click roughly towards the Inside (center) of the rectangle to define the direction.

4. Enter the Horizontal Distance (Width) to cut.

5. Enter the Vertical Distance (Height) to cut.

6. The　selected corner is immediately notched out according to your inputs.
