Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

Full List of all CADian Lisps : [Full CADian Lisp List]

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• 2CRI

2/ Description :

This tool automatically draws 2 circles (holes) inside the left and right sides of a rectangle.

• Inner Alignment : Places the holes inside the rectangular boundary, aligned to the vertical center.

• Precision Positioning : You specify exactly how far inward from the edge the holes should be placed.

• Complete Geometry : Generates both the holes and their centerlines instantly.

3/ How to Use :

1. Type 2CRI in the command line and press Enter.

2. Specify the Bottom-Left corner of the rectangle.

3. Specify the Top-Right corner of the rectangle.

4. Enter the Distance from the side edge to the center of the hole (inward).

5. Enter the Radius of the circles.

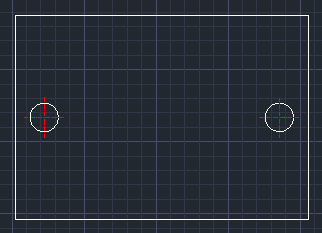

6. The tool draws the two holes and centerlines inside the rectangle.
