1/ Command :

• RCT

2/ Description :

This tool instantly generates centerlines for rectangular shapes (e.g., shafts, architectural columns).

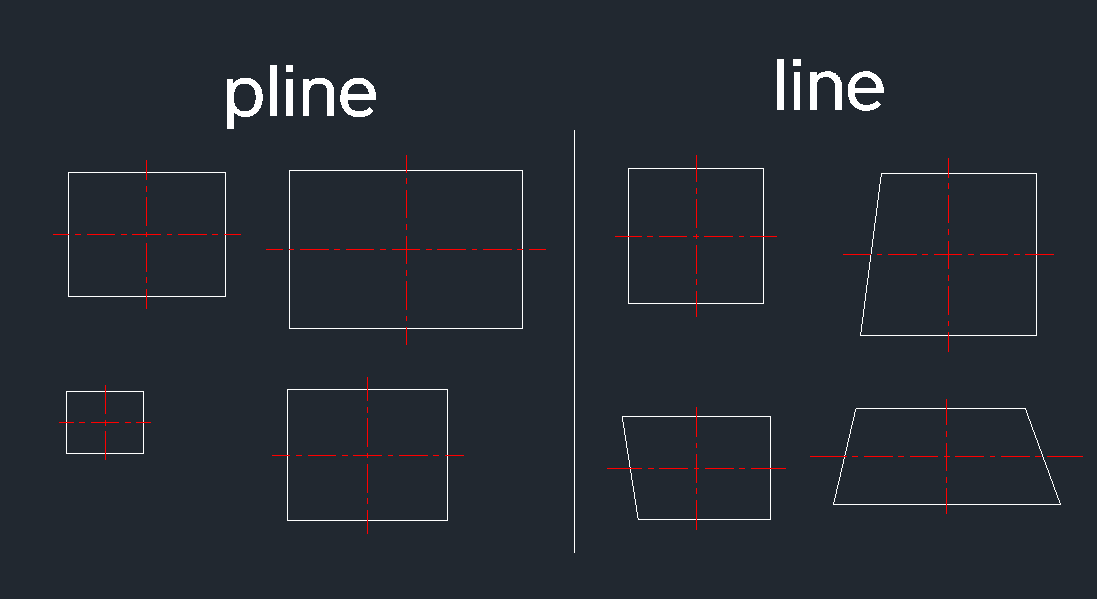

• Versatile　Selection : Works regardless of whether the rectangle is drawn with Polyline or individual Lines.

• Auto-Calculation : Calculates the geometric center based on the two diagonal corner points you　select.

• Auto-Layering : Automatically creates and uses the CENTER layer.

3/ How to Use :

1. Type RCT in the command line and press Enter.

2. Click the Bottom-Left corner of the rectangular area.

3. Click the Top-Right corner of the rectangular area.

4. The tool automatically draws the cross-hair centerlines for that area.
