Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

Full List of all CADian Lisps : [Full CADian Lisp List]

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• DM

2/ Description :
This tool allows you to easily move dimension lines, extension lines, or dimension text to a new position using a simple two-click operation.

• Rubber Band Guide: A visual "rubber band" line appears after　selecting the dimension, allowing you to see exactly where the line will be moved.

• Quick Adjustment: It simplifies the process of adjusting dimension positions compared to standard grip editing.

3/ How to Use:

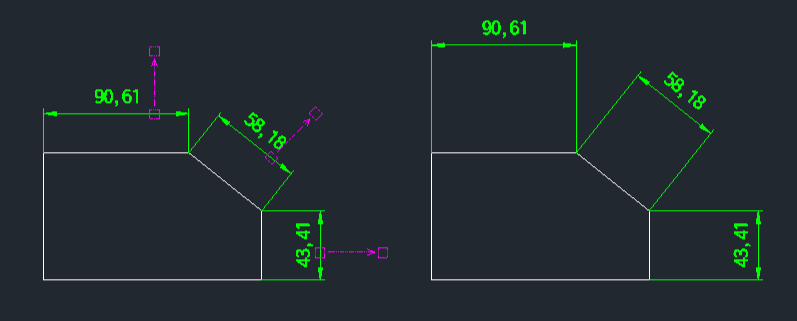

1. Type dm in the command line and press Enter.

2. Select the dimension line you want to move.

3. A rubber band line will appear from the　selected point. Move your cursor to the desired target position.

4. Click the second point to snap the dimension line to that new location.
