1/ Command :

• ARF

2/ Description :
This tool is used to reverse the direction of dimension arrowheads.

• Compatibility: This tool utilizes the AIDIMFLIPARROW variable introduced in CADian 2026, so it only works in CADian 2026 or higher.

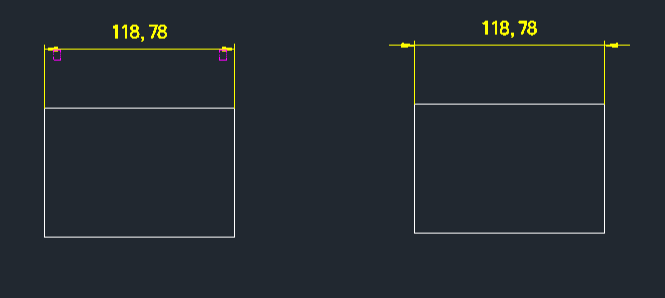

• Functionality: It provides an easy way to flip arrowheads to the opposite side simply by clicking on the arrowhead of a dimension.

3/ How to Use:

1. Type ARF in the command line and press Enter.

2. Click on the arrowhead portion of the dimension you want to reverse.

3. The arrowhead will flip to the opposite direction.

4. Press Esc to exit the command once finished.
