1/ Command :

• FiXX

2/ Description :

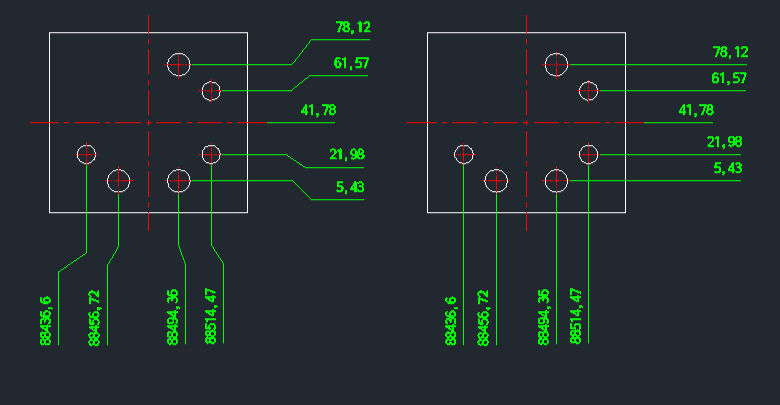

This tool straightens dimension extension lines (specifically for ordinate dimensions) that have become skewed or crooked.

• Batch Correction: You can　select one or multiple dimensions at once.

• Automatic Straightening: It forces the extension lines to become perfectly vertical or horizontal, correcting any graphical errors.

3/ How to Use :

1. Type fixx in the command line and press Enter.

2. Select the dimension(s) you wish to correct.

3. Press Enter. The　selected extension lines will be straightened.
