1/ Command :

• ARCC

2/ Description :

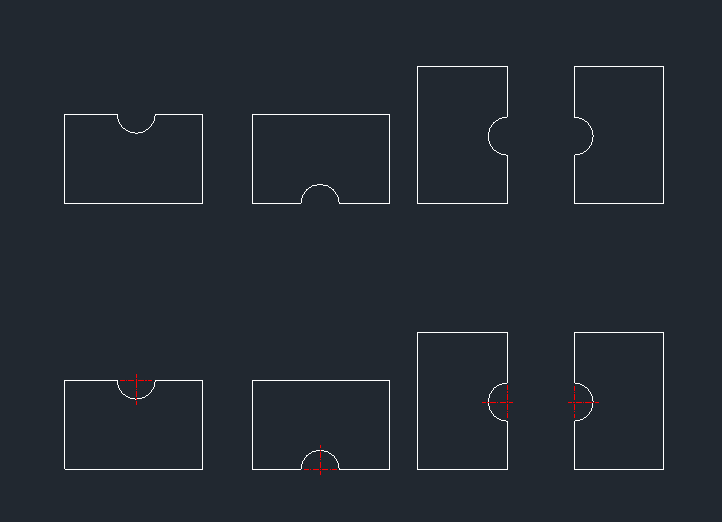

This tool automatically draws centerlines for arcs within a　selected area.

• Batch Processing: Allows you to　select multiple objects using a window, and the tool will filter and apply centerlines to all valid arcs found.

• Arc Detection: Specifically targets arc segments to generate their corresponding center marks/lines instantly.

3/ How to Use :

1. Type arcc in the command line and press Enter.

2. Click the First Point (PT1) to start the　selection window.

3. Click the Second Point (PT2) to finish the　selection window, enclosing the arcs you want to process.

4. Centerlines are automatically generated for all detected arcs within the　selection.
