1/ Command :

• W2

2/ Description :

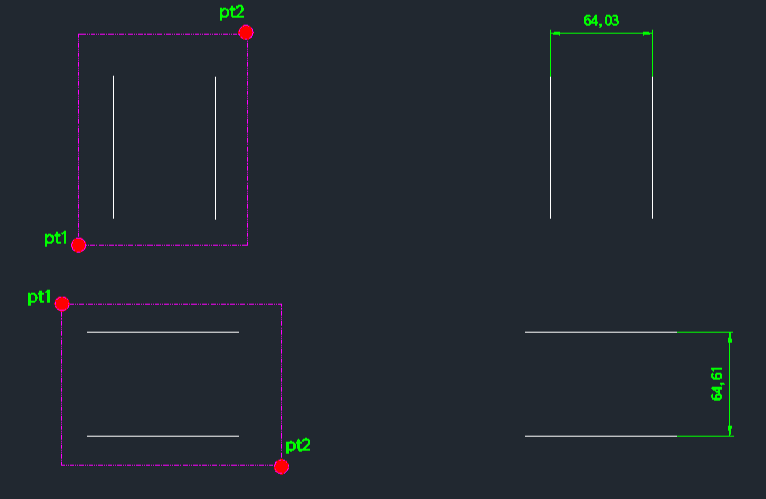

This tool creates vertical or horizontal linear dimensions (DLI) instantly by　selecting two lines with a window.

• Smart Positioning: The dimension line is automatically placed at the location of the second point (PT2) used for the　selection window.

• Selection Constraint: The　selection window must enclose exactly two lines for the command to function correctly.

3/ How to Use :

1. Type w2 in the command line and press Enter.

2. Click the First Point (PT1) to start the　selection window.

3. Click the Second Point (PT2) to finish the　selection.

• Note: Ensure only two lines are inside the window. The dimension line will appear at the location of this second click.

4. The linear dimension is automatically created between the　selected lines.
