Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

Full List of all CADian Lisps : [Full CADian Lisp List]

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• TR5

2/ Description :
This tool improves the TRIM command by automatically erasing objects that cannot be trimmed normally (e.g., lines that do not intersect a cutting edge).

• Smart Trim/Erase: Functions like the standard TRIM command but automatically switches to ERASE for objects that are isolated or fail to trim.

• Single Click Action: Simply click on the object segment you want to remove; the tool decides whether to trim or erase it.

3/ How to Use :

1. Type tr5 in the command line and press Enter.

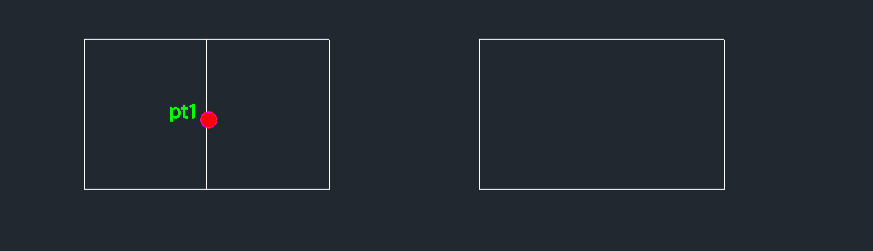

2. Click on the line or object segment you wish to remove.

• If it intersects another object, it will be trimmed.

• If it does not intersect, it will be erased.

3. Continue clicking objects to remove them.

4. Press Esc to finish.
