1/ Command :

• ARD

2/ Description :
This tool creates a double-headed arrow based on two points and a scale factor.

• Simple Creation: Draws an arrow by defining a start point and an end direction point.

• Scalable Size: Allows you to input a scale factor to adjust the size of the arrowhead (e.g., scale 1 = 5mm side length, scale 5 = 25mm side length).

3/ How to Use :

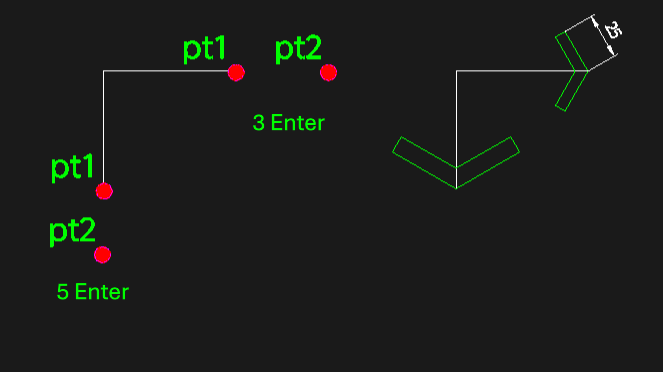

1. Type ard in the command line and press Enter.

2. Click the First Point (PT1) where the arrow line starts.

3. Click the Second Point (PT2) to define the direction of the arrow.

4. Enter the Scale Factor for the arrowhead size and press Enter.
