1/ Command :

• RECF

2/ Description :
This tool creates a filled rectangle (solid fill) based on a starting point and specified dimensions.

• Point-Based Creation: Starts drawing from a user-defined base point (e.g., bottom center).

• Dimensional Input: Requires input for width and height to define the rectangle's size.

• Dual Creation Option: Allows creating a mirrored or second rectangle on the opposite side by simply picking another point.

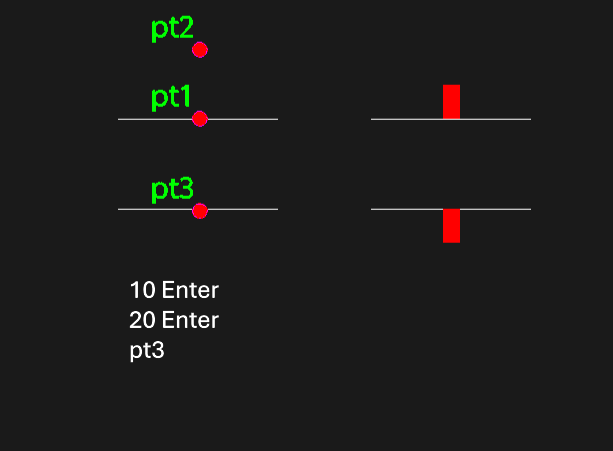

3/ How to Use :

1. Type recf in the command line and press Enter.

2. Click the Start Point (PT1).

3. Click a point to define the Direction (PT2).

4. Enter the Width value.

5. Enter the Height value.

6. (Optional) Click an Opposite Point to create another filled rectangle on the other side, or press Esc to finish.
