1/ Command :

• Mi2P

2/ Description :
This tool streamlines the mirroring process by combining object　selection and axis definition into just two clicks.

• Selection & Axis in One: The second point of your　selection window automatically acts as the point the mirror axis passes through.

• Smart Snap: The tool automatically snaps to the "Nearest" point on an entity for the second click, ensuring precise alignment.

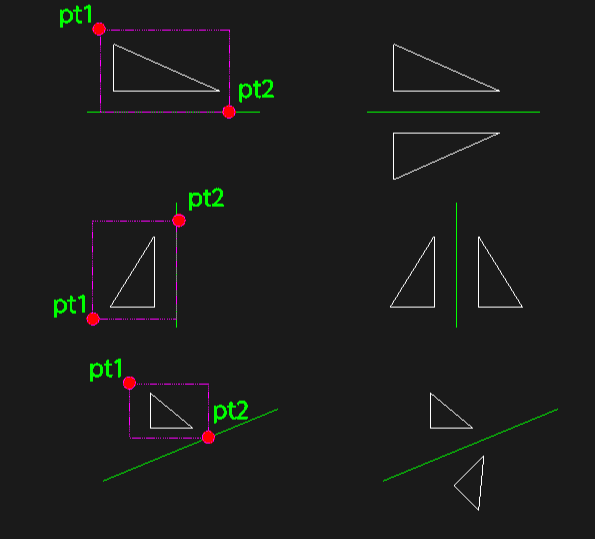

3/ How to Use :

1. Type mi2p in the command line and press Enter.

2. Click the First Corner (PT1) of the　selection window.

3. Click the Second Corner (PT2) on the line or point you want to use as the mirror axis center.

4. The objects are mirrored around the vertical axis at PT2.
