1/ Command :

• ADAC

2/ Description :
This tool automatically detects and dimensions all arcs and circles within a user-selected area.

• Smart Detection: Identifies circular geometry (arcs and circles) inside the　selection window and applies the correct dimension type (Radius for Arcs, Diameter for Circles).

• Batch Processing: Handles multiple arcs and circles in a single operation, significantly speeding up annotation.

3/ How to Use :

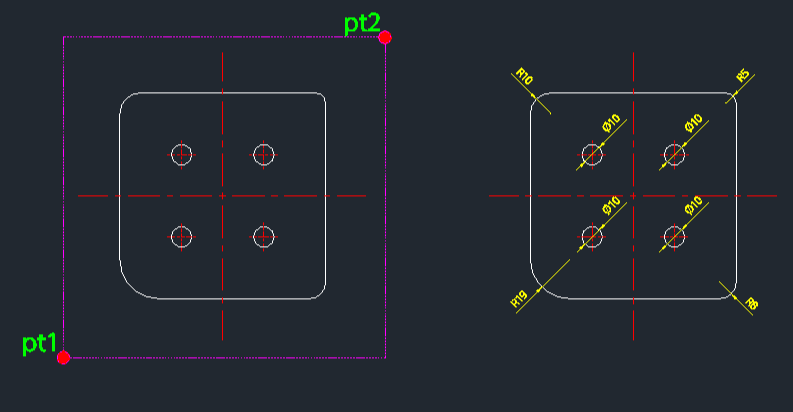

1. Type adac in the command line and press Enter.

2. Click the First Corner (PT1) of the　selection area.

3. Click the Diagonal Corner (PT2) to complete the　selection.

4. Press Enter to automatically dimension all　selected arcs and circles.
