1/ Command :

• SSANG

2/ Description :
This tool automatically creates paired horizontal and vertical dimensions for a feature relative to a center line.

• Dual Dimensioning: Simultaneously creates dimensions for width and diameter/height using a centerline reference.

• Optional Diameter Symbol: Allows for the automatic addition of a diameter symbol (Ø) to the dimension text upon completion.

3/ How to Use :

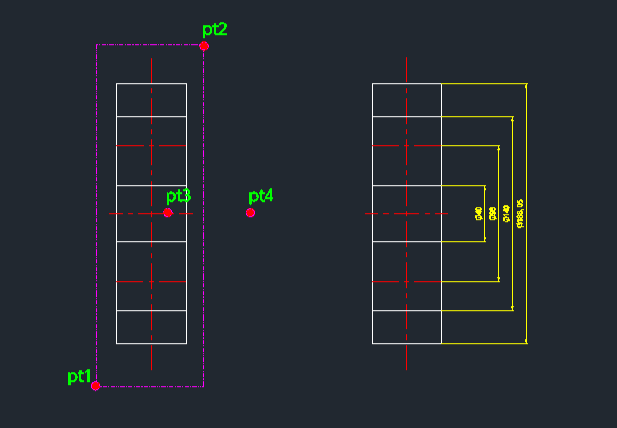

1. Type ssang in the command line and press Enter.

2. Click the First Feature Point (PT1).

3. Click the Second Feature Point (PT2).

4. Click a point on the Centerline (PT3).

5. Click a point to define the Dimension Position/Direction (PT4).

6. Press Enter to add the Ø symbol, or Esc to finish without it.
