1/ Command :

• DELC

2/ Description :
This tool allows you to quickly　delete circles within a　selected area based on their diameter.

• Filter by Size: You can specify a diameter, and only circles matching that size within the　selection window will be　deleted.

• Delete All: If no diameter is specified (by pressing Enter), all circles within the　selected area will be　deleted.

• Selection Method: Uses a standard window　selection to define the area.

• Input: Requires defining a　selection window and optionally entering a diameter value.

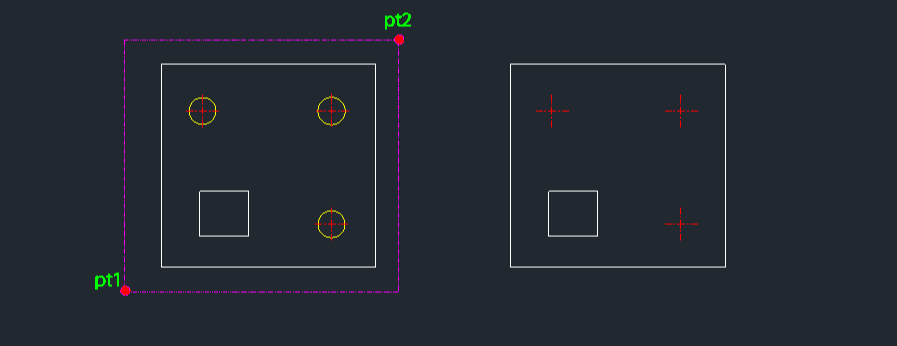

3/ How to Use :

1. Type delc in the command line and press Enter.

2. Click the First Corner (PT1) of the　selection area.

3. Click the Diagonal Corner (PT2) to complete the　selection window.

4. Enter the Diameter of the circles you want to　delete and press Enter.

• Alternatively, press Enter without typing a value to　delete all circles in the　selection.

5. The matching circles (or all circles) within the area are　deleted.
