1/ Command :

• AREPP

2/ Description :
This tool calculates the area of a shape defined by manually picking points and　inserts the result as a text label.

• Customizable Output: Allows　selection of units ($mm^2$ or $m^2$), decimal precision, and text height.

• Point-Based: Useful for defining irregular areas by clicking successive boundary points.

3/ How to Use :

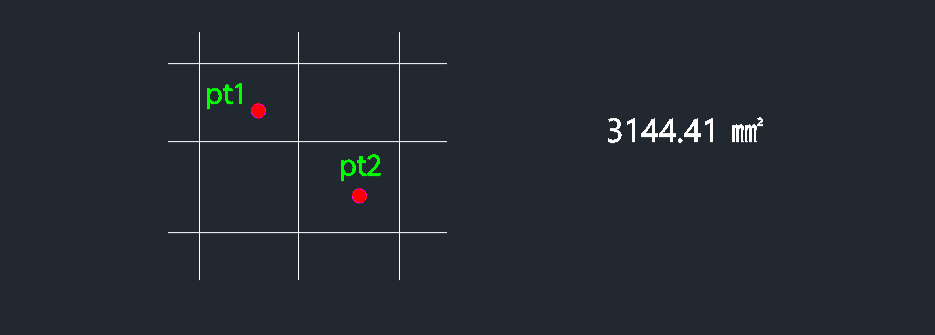

1. Type arepp in the command line and press Enter.

2. Enter 1 for $mm^2$ or 2 for $m^2$.

3. Enter the number of Decimal Places.

4. Pick the Points to define the area boundary (press Enter to finish).

5. Click the　Insertion Point for the text.

6. Enter the Text Height.
