1/ Command :

• PMOVE

2/ Description :
This tool moves　selected point objects vertically (along the Y-axis) until they intersect with a　selected polyline.

• Vertical Projection: Ideal for projecting points onto a profile or cross-section line.

• Batch Operation: Can process multiple point objects at once.

• Constraint: Points are moved strictly along the Y-axis to meet the polyline.

• Input: Requires　selecting the point objects first, then the target polyline.

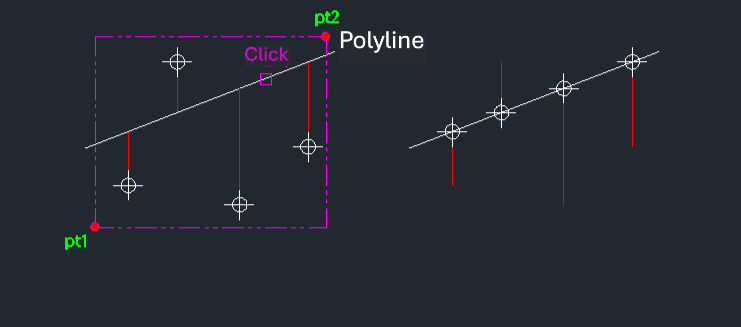

3/ How to Use :

1. Type pmove in the command line and press Enter.

2. Select the Point Objects using a　selection window and press Enter.

3. Select the Target Polyline.

4. The points are moved vertically to intersect the polyline.
