1/ Command :

• 4CRH

2/ Description :
Similar to the 4CRV tool, this Lisp routine creates four circles symmetrically arranged within a rectangle, but the input logic is oriented horizontally.

• Layout: Generates four circles at the corners of a rectangle, offset by specified horizontal and vertical distances.

• Input: Requires the rectangle's two corner points, offsets from the corner to the circle center, and the circle diameter.

• Auto-Layer: Creates necessary layers automatically.

3/ How to Use :

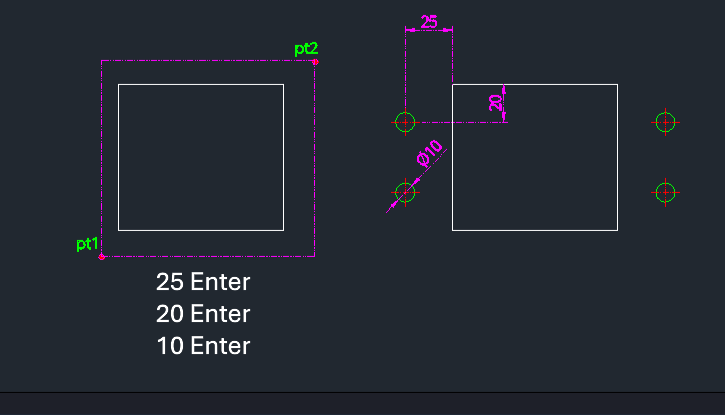

1. Type 4crh in the command line and press Enter.

2. Click the First Corner Point (PT1) of the rectangle.

3. Click the Second Corner Point (PT2).

4. Enter the Horizontal Offset from the corner to the circle center.

5. Enter the Vertical Offset from the corner to the circle center.

6. Enter the Circle Diameter.

7. Four circles (with center lines) are drawn inside the rectangle based on the horizontal orientation.
