1/ Command :

• CBLEA

2/ Description :
This tool streamlines the process of adding dimension leaders for counterbore holes.

• Automated Detailing: Instead of manually drawing leaders and typing out the counterbore symbol and dimensions, this tool generates them automatically based on the　selected geometry.

• Input: Requires　selecting the inner (small) circle, the outer (large) circle, a point for the leader landing (PT1), and the depth value.

• Flexibility: It works in all 4 quadrants/directions. The size of arrows and text is controlled by your current dimscale, dimtxt, and dimasz settings.

3/ How to Use :

1. Type cblea in the command line and press Enter.

2. Select the Small Circle.

3. Select the Large Circle.

4. Click the Leader Landing Point (PT1).

5. Enter the Depth Value.

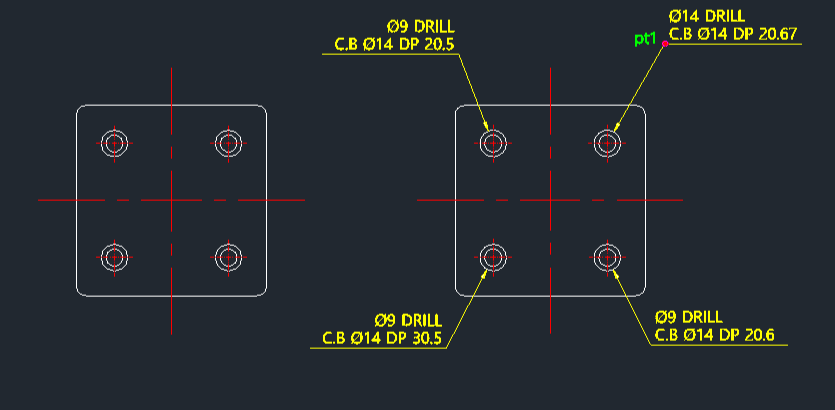

6. The counterbore dimension leader is drawn with the appropriate symbols and values.
