1/ Command :

• RSLOT

2/ Description :
This tool creates a rounded slot shape (like a peanut or elongated hole) based on three points and two radius values.

• Complex Geometry: It draws a slot that is bent or angled, defined by two segments connected at a middle point, with rounded ends and filleted connections.

• Input: Requires three points (Start, Middle/Bend, End), a radius for the slot ends, and a radius for the connecting fillet.

3/ How to Use :

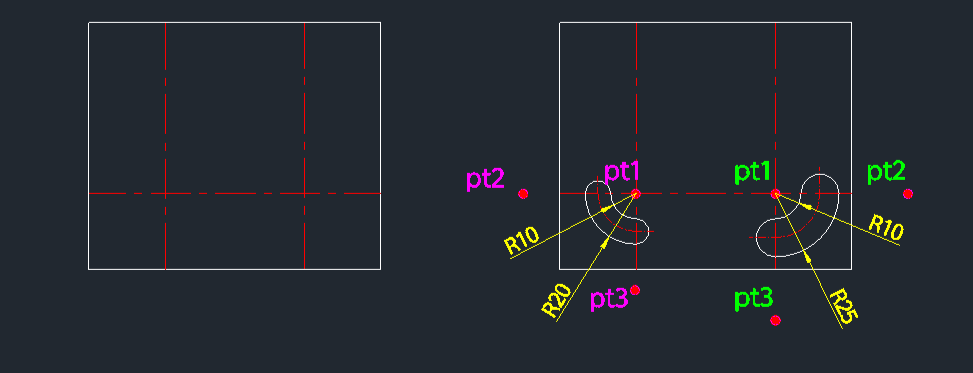

1. Type rslot in the command line and press Enter.

2. Click the First Point (PT1) of the center line.

3. Click the Second Point (PT2) of the center line (vertex/bend point).

4. Click the Third Point (PT3) of the center line.

5. Enter the Slot End Radius (e.g., 10).

6. Enter the Fillet Radius (e.g., 20).

7. The bent, rounded slot is drawn along the defined center line.
